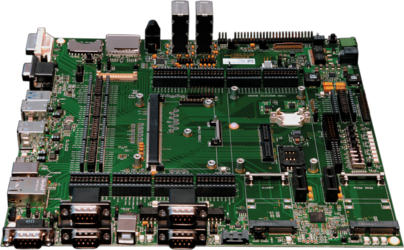

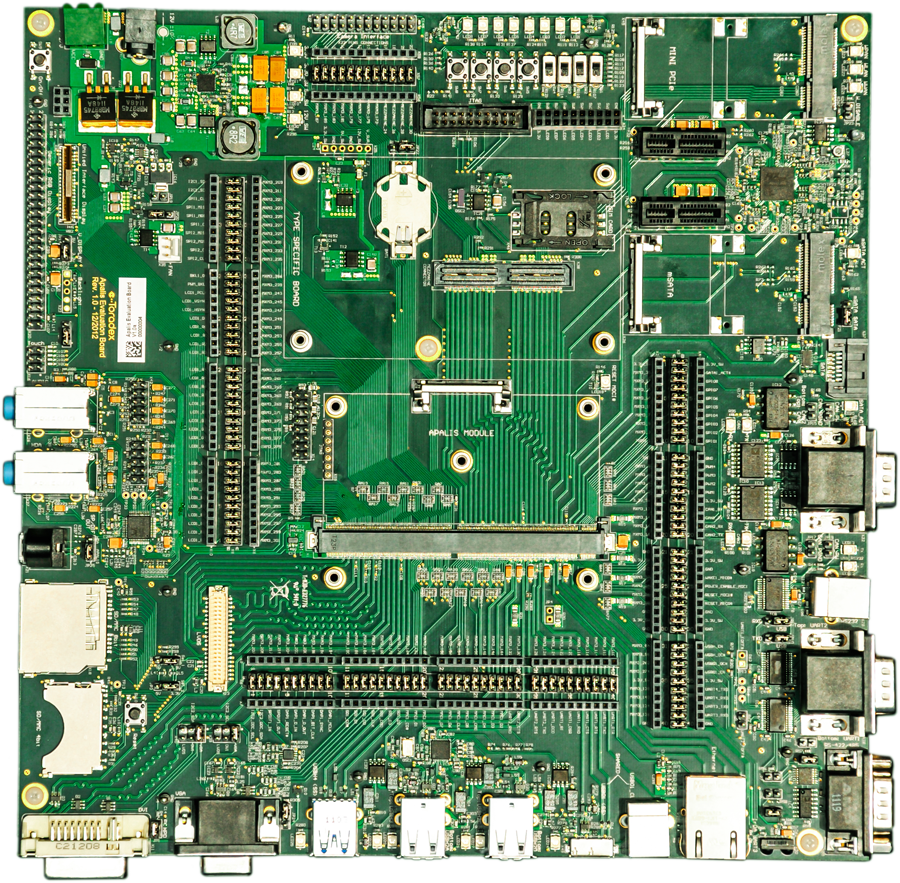

Apalis Evaluation Board
The Apalis Evaluation Board is designed to be a flexible development environment to explore and evaluate the functionality and performance of the Apalis product family. All interfaces on the Apalis can be easily accessed, through a combination of real world connectors and easily accessible, standard pitch headers. The breakout area allows easy probing of a large number of Apalis interfaces and easy access to break and jumper signals as needed.
Highlights
The Apalis Evaluation Board is compatible with the Apalis Arm family of modules. The Apalis Evaluation Board provides a flexible development environment to explore the functionality and performance of the Apalis Computer on Module family. Apalis supports a wide variety of industry standard interfaces, at the same time providing advanced multimedia and high speed connectivity making it suitable for an almost unlimited number of applications. It is designed to be used with the Apalis T30 (based on NVIDIA® Tegra™ 3 SoC), Apalis iMX6 (based on NXP®/Freescale i.MX 6 SoCs) and the Apalis iMX8 (based on NXP® i.MX 8 SoCs) Computer on Modules.
The Apalis Evaluation Board is equipped with a variety of connectivity interfaces including USB 3.0, PCI-Express, Serial ATA, Gigabit Ethernet, I2C, SPI, RS232, RS485 and CAN. Supported multimedia interfaces include Digital and Analogue Audio, HDMI, LVDS, VGA and TFT LCD.
Apalis interfaces can be easily accessed by means of physical connectors and standard pitch headers. The jumper and breakout areas enable easy probing, debugging and re-routing of a large number of Apalis interface signals as required, which makes it an extremely useful platform throughout product development. Additional on-board buttons, switches and LEDs can be easily patched to the jumper area to support fast prototyping using common input/output methods.
The Apalis Evaluation Board PCB comprises of four layers, of which only one is used for high speed signal routing. This demonstrates how the Direct Breakout technology makes it incredibly easy to implement leading edge interfaces with minimal risk and effort. CAE data including schematics, layout and IPC-7351 compliant component libraries, are freely downloadable from our developer website.
Accessories
Toradex offers off-the-shelf accessories that can be directly used in end products. For a few of these accessories, design files including assembly drawings, schematics and Altium projects are available.
Toradex tests the peripherals listed in its webshop and works directly with vendors of Cameras, Modems, Displays, Sensors, and more, to make the integration with Toradex SoMs as easy as possible.
- Compatible with Apalis iMX6Q IT and Apalis iMX6D IT
- 4 screws (M3x10mm) included with each heatsink for easy mounting to Apalis Carrier Boards
- Additional threaded holes available for attaching fan to the carrier board
- Compatible with Apalis T30
- 4 screws (M3x10mm) included with each heatsink for easy mounting to Apalis Carrier Boards
- Additional threaded holes available for attaching fan to the carrier board
- Compatible with Apalis iMX6Q, Apalis iMX6D and Apalis TK1
- 4 screws (M3x10mm) included with each heatsink for easy mounting to Apalis Carrier Boards
- Additional threaded holes available for attaching fan to the carrier board
- Compatible with Apalis iMX8
- Easily mounted to the Apalis Carrier Boards by means of 4 screws
- Additional threaded holes available for attaching fan to the carrier board
- Compatible with Apalis Evaluation Board and Ixora Carrier Board
- CSI and DSI interfaces on one connector
- Push button for Apalis T30 reset
- 1x Tactile switch to enter Apalis iMX6 module recovery mode
- 1x Tactile switch to reset Apalis iMX6 module
- LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board
- Plug and Play (Windows Compact Embedded 6/7 compatible)
- BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes
- WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes
- Can be setup as a ad-hoc network via peer to peer communications
- Parallel data output format: 8-Bit Parallel ITU-R BT.656 with external HSync and VSync
- No external power supply required
- Compatible with Colibri Evaluation Board and Apalis Evaluation Board
- Power Adapter: 12VDC 30W with international plugs
- Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board
Buy Now
1 Modules, 11 Accessories
V1.1Z
PN: 01151125
Connectivity: USB 3.0: 1x Host, 1x OTG, USB 2.0: 4x Host, Gigabit Ethernet, 3x I2C, 2x SPI, 4x PWM, 4x ADC, 2x CAN, 8x Switches, 8x LEDs, up to 135 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x (Out also on TOSLINK) S/PDIF In/ Out, 1x 8/10/12 Bit Camera Parallel Interface, 4/5-wire Resistive Touch
Physical: 7-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 250 x 250 mm
-
Quantity>0
-
Unit Price$349.40
Intended Use: For Evaluation/Development
In stock
V1.0B
PN: 23051001
Compatible with Apalis iMX6Q IT and Apalis iMX6D IT. 4 screws (M3x10mm) included with each heatsink for easy mounting to Apalis Carrier Boards. Additional threaded holes available for attaching fan to the carrier board. -40° to 200° C Temp.
-
Quantity1-99>99
-
Unit Price$17.20
Intended Use: For End Products
In stock
V1.0B
PN: 23061001
Heatsink for Apalis T30 module
Compatible with Apalis T30. 4 screws (M3x10mm) included with each heatsink for easy mounting to Apalis Carrier Boards. Additional threaded holes available for attaching fan to the carrier board. -40° to 200° C Temp.
-
Quantity1-99>99
-
Unit Price$17.20
Currently low stock level. More coming soon. Please contact us for details.
Intended Use: For End Products
Limited stock
V1.0B
PN: 23071001
Heatsink for Apalis TK1, iMX6Q and iMX6D modules
Compatible with Apalis iMX6Q, Apalis iMX6D and Apalis TK1. 4 screws (M3x10mm) included with each heatsink for easy mounting to Apalis Carrier Boards. Additional threaded holes available for attaching fan to the carrier board. -40° to 200° C Temp.
-
Quantity1-99>99
-
Unit Price$17.20
Intended Use: For End Products
In stock
V1.0B
PN: 23081001
Heatsink for Apalis iMX8 modules
Compatible with Apalis iMX8. Easily mounted to the Apalis Carrier Boards by means of 4 screws. Additional threaded holes available for attaching fan to the carrier board.
-
Quantity1-99>99
-
Unit Price$17.20
Intended Use: For End Products
In stock
V1.1A
PN: 23091100
Heatsink Fan is compatible with all Apalis Heatsink types and plug-and-play with Apalis Evaluation Board and Ixora Carrier board.
The fan is intended for development and evaluation purposes only.
Compatible with Apalis Evaluation Board and Ixora Carrier Board.
-
Quantity>0
-
Unit Price$19.90
Intended Use: For Evaluation/Development
In stock
V2.0A
PN: 01162000
Mezzanine board for Apalis T30 module
CSI and DSI interfaces on one connector. Push button for Apalis T30 reset, Range. Size: 100 x 60 mm.
-
Quantity>0
-
Unit Price$55.90
Intended Use: For Evaluation/Development
In stock
V2.0A
PN: 01172000
Mezzanine board for Apalis iMX6 module
1x Tactile switch to enter Apalis iMX6 module recovery mode. 1x Tactile switch to reset Apalis iMX6 module, Range. Size: 100 x 60 mm.
-
Quantity>0
-
Unit Price$55.90
Currently low stock level. More coming soon. Please contact us for details.
Intended Use: For Evaluation/Development
Limited stock
V1.0A
PN: 12121000
Capacitive Touch Displays (LVDS) for Apalis modules
LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board. -20° to 70° C Temp, Range. Size: 248.5 x 166.1 x 15.0 mm.
-
Quantity>0
-
Unit Price$258.00
Intended Use: For Evaluation/Development
In stock
V1.0A
PN: 21041000
LM816 USB WiFi for Apalis and Colibri Family
Plug and Play (Windows Compact Embedded 6/7 compatible). BPSK, QPSK, 16 QAM, 64 QAM, DBPSK, DQPSK, and CCK modulation schemes. WEP, TKIP, and AES, WPA, WPA2 hardware encryption Schemes. Can be setup as a ad-hoc network via peer to peer communications. -10° to 60° C Temp, Range. Size: 17 x 15 x 8 mm.
-
Quantity1-99>99
-
Unit Price$28.05
Intended Use: For Evaluation/Development
In stock
V2.0C
PN: 01192002
Analogue Camera Adapter for Apalis & Colibri modules
Parallel data output format: 8-Bit Parallel ITU-R BT.656 with external HSync and VSync. No external power supply required. Compatible with Colibri Evaluation Board and Apalis Evaluation Board. -10° to 60° C Temp, Range. Size: 60 x 50 x 9.4 mm.
-
Quantity>0
-
Unit Price$50.00
Intended Use: For Evaluation/Development
In stock
V1.1C
PN: 01131102
Accessory kit for Toradex carrier boards
Power Adapter: 12VDC 30W with international plugs. Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board.
-
Quantity>0
-
Unit Price$50.00
Intended Use: For Evaluation/Development
In stock
× ![]()
