Capacitive Touch Display 10.1" LVDS
This display is directly compatible with the Apalis SoM Family.
Highlights
Out-of-the-Box Experience with Toradex Carrier Boards
It works with the following Toradex Carrier Boards out-of-the-box:
Scope of delivery

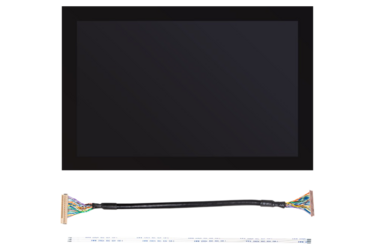

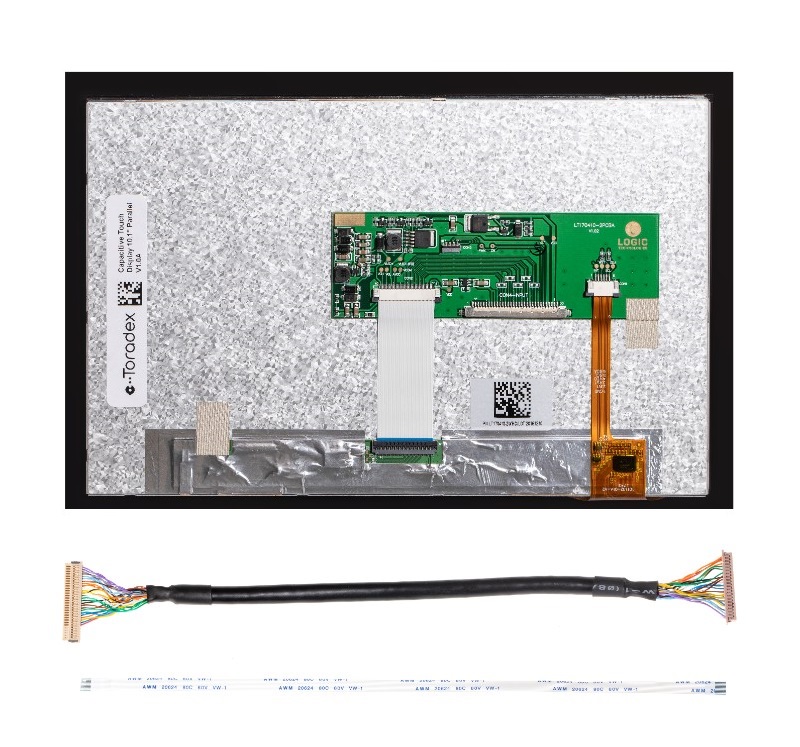

- 10.1” Capacitive Touch Display Panel
- LVDS cable
- 10 Pins 0.5mm FFC Ribbon Cable
Carrier Boards
The carrier board provides the necessary signal and power levels to the CoM. It also houses the application-specific connectivity and multimedia interfaces, such as USB, Ethernet, UART and HDMI.
Learn more about SBCs and Carrier Boards
Supported Modules
USB 3.0
USB 2.0
Ethernet
PCIe
I2C
SPI
UART
IrDA
PWM
GPIO
Analog Input
Serial ATA
SDIO/SD/MMC
CAN
JTAG
Switches
LEDs
LVDS
HDMI
Digital Audio
S/PDIF In / Out
VGA
RGB
Capacitive Touch Interface
Resistive Touch
Camera Parallel Interface
Camera Serial Interface
Analog Audio Line in
Analog Audio Mic in
Analog Audio Headphone out
Type Specific Board Connector
USB-to-RS232 Transceiver
RTC on Board
Included Accessory
Altium CAE Data Freely Available
Supply Voltage
On-Board Power Supplies
Size
Temperature
Buy Now
1 Modules, 3 Carrier Boards
V1.0A
PN: 12121000
Capacitive Touch Displays (LVDS) for Apalis modules
LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board. -20° to 70° C Temp, Range. Size: 248.5 x 166.1 x 15.0 mm.
-
Quantity>0
-
Unit Price$258.00
Intended Use: For Evaluation/Development
In stock
V1.3A
PN: 01331300
Small form-factor Apalis Arm Computer Module family Carrier Board
Connectivity: USB 3.0: 2x Host, USB 2.0: 1x Host/ 1x OTG, Gigabit Ethernet, 2x I2C, 1x SPI, 4x PWM, 4x ADC, 2x CAN, 2x LEDs, up to 40 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x/ 1x S/PDIF In/ Out, 1x 10 Bit Camera Parallel Interface, 4/5-wire Resistive Touch
Physical: 7-27V DC Supply Voltage, 5V 6A, 3.3V 8A On-Board Power Supplies, Size: 125 x 90 mm
-
Quantity1-99>99
-
Unit Price$134.40
Intended Use: For End Products
In stock
V1.1Z
PN: 01151125
Connectivity: USB 3.0: 1x Host, 1x OTG, USB 2.0: 4x Host, Gigabit Ethernet, 3x I2C, 2x SPI, 4x PWM, 4x ADC, 2x CAN, 8x Switches, 8x LEDs, up to 135 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 1x (Out also on TOSLINK) S/PDIF In/ Out, 1x 8/10/12 Bit Camera Parallel Interface, 4/5-wire Resistive Touch
Physical: 7-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 250 x 250 mm
-
Quantity>0
-
Unit Price$349.40
Intended Use: For Evaluation/Development
In stock
V2.0B
PN: 01352001
Small form-factor Pico-ITX Colibri Arm Computer Module family Carrier Board
Connectivity: USB 2.0: 1x Host/ 1x OTG, 10/100 Mbit Ethernet, 1x I2C, 1x SPI, 4x PWM, 4x ADC, up to 26 GPIOs
Multimedia: Audio out: 1x (Stereo), Audio in: 1x (Stereo), 4/5-wire Resistive Touch
Physical: 6-27V DC Supply Voltage, 5V 5A, 3.3V 5A On-Board Power Supplies, Size: 100 x 72 mm
-
Quantity1-99>99
-
Unit Price$79.95
Intended Use: For End Products
In stock
× ![]()
