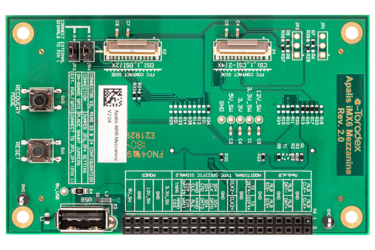

Apalis iMX6 Mezzanine

    The Apalis iMX6 Mezzanine board is compatible with the Apalis Evaluation Board and provides the following features:

    • 1x Generic Header, 1x USB 2.0
    • 1x Tactile switch to enter Apalis iMX6 module recovery mode
    • MIPI CSI-2 and MIPI DSI
    • 1x Tactile switch to reset Apalis iMX6 module
    Apalis iMX6 Mezzanine

    Highlights

    Apalis iMX6 Mezzanine is an add-on board for the Apalis Evaluation Board which provides access to the type specific interfaces available on the Apalis iMX6 module. It allows the user to test and evaluate the type specific features available on the Apalis iMX6 module.

    Since type specific features are dependent on the Apalis module. Specific types of mezzanine boards will be available for each Apalis module. Customers are free to develop their own type specific mezzanine board for prototyping and development purposes. Please refer to the datasheets for the individual Apalis module for more information.

    • 1x MIPI CSI (Quad Lane) connector
    • 1x MIPI DSI (Quad Lane) connector
    • 1x 40 pins Generic Header, 1x USB 2.0
    • One Push button for Apalis iMX6 Reset and one for Recovery mode


    Features

    Sample Production

    Apalis iMX6 Mezzanine

    PN: 0117
    •
    Buy Now
    Size
    100 x 60 mm
    Intended Use
    Pricing
    For Evaluation/Development
    1 : $55.90

    Buy Now

    1 Modules
    V2.0A
    Apalis iMX6 Mezzanine
    PN: 01172000
    Sample Production

    Mezzanine board for Apalis iMX6 module

    1x Tactile switch to enter Apalis iMX6 module recovery mode. 1x Tactile switch to reset Apalis iMX6 module, Range. Size: 100 x 60 mm.

    • Quantity
      >0
    • Unit Price
      $55.90
    Currently low stock level. More coming soon. Please contact us for details.
    Intended Use: For Evaluation/Development

    Limited stock
