Mallow Carrier Board
- Compatible with the Verdin System on Module Family
- Low-cost Carrier Board in the Verdin Family
- Small form factor (Pico-ITX 100mm x 72mm)
- Built for Volume Production
Destaques
Simple to Extend
Use extension connectors for your custom daughter boards. Ready-to-use Displays are available.
M.2 Connector for Modems, ML Accelerators, Storage, and more.
Torizon - The Easy-To-Use Industrial Linux Platform
Mallow is supported by Torizon, Toradex's Easy-to-Use Industrial Linux Platform. It allows you to Modernize your Development and Maintenance. Torizon is easy to use, secure, and reliable thanks to full-stack integration from the cloud to the hardware.
Learn More
Open Source Hardware
All the Design Data is available, including Altium Design Files, Schematics, and Bill of Material (BOMs), making Mallow an ideal starting point for your own customized board.
Learn More
Cost-Effective
Product Design and Component selection are optimized to provide robustness in challenging environments while keeping the cost low. Long-term supported software and simple and secure update features reduce the maintenance cost.
Built for Volume
The Mallow Carrier board is the ideal solution for industrial and embedded applications. Designed with cost optimization in mind for small and medium production runs, it's perfectly suited for volume production. Whether you're manufacturing a small batch or scaling up, the Mallow Carrier board is the reliable choice for your project.
Scalable Performance
The Mallow Carrier board seamlessly integrates with the entire Verdin System on Modules Family, offering a hassle-free way to adjust performance and pricing. The compatibility goes beyond hardware, as Toradex's software simplifies the transition of your software stack across different modules. Furthermore, the Mallow board guarantees compatibility with even the forthcoming Verdin SoMs.
Características
Gigabit Ethernet
2x USB 3.x SuperSpeed**
Recovery Mode Pads
USB-C Dual Role
HDMI 2.0*
Power Terminal 7V - 24V DC
Alternative Power Pins
JTAG
SODIMM Connector Compatible with all Verdin Modules
Debug UART
LVDS Display Interface*
4x User LEDs
Capacitive Touch / I2C
Temperature Sensor
Reset Button
Power Button
FRONT
Nano SIM Card (Connected to M.2)
Micro SD Card
Debug UART
Quad Lane MIPI CSI-2 Camera Interface
Quad Lane MIPI DSI Display Interface
EEPROM for simple configuration
TPM 2.0
USB 3.x Hub
M.2 Connector B Key 30/42/52mm cards
Expansion Connector Power Control Signals, M.2 GPIOs
Backup Battery CR1025
Expansion Connector 2x UART, 4x I2C, 1x SPI, 2x CAN, 4x ADC, 1x I2S, 2x PWM, 4x GPIOs, Power

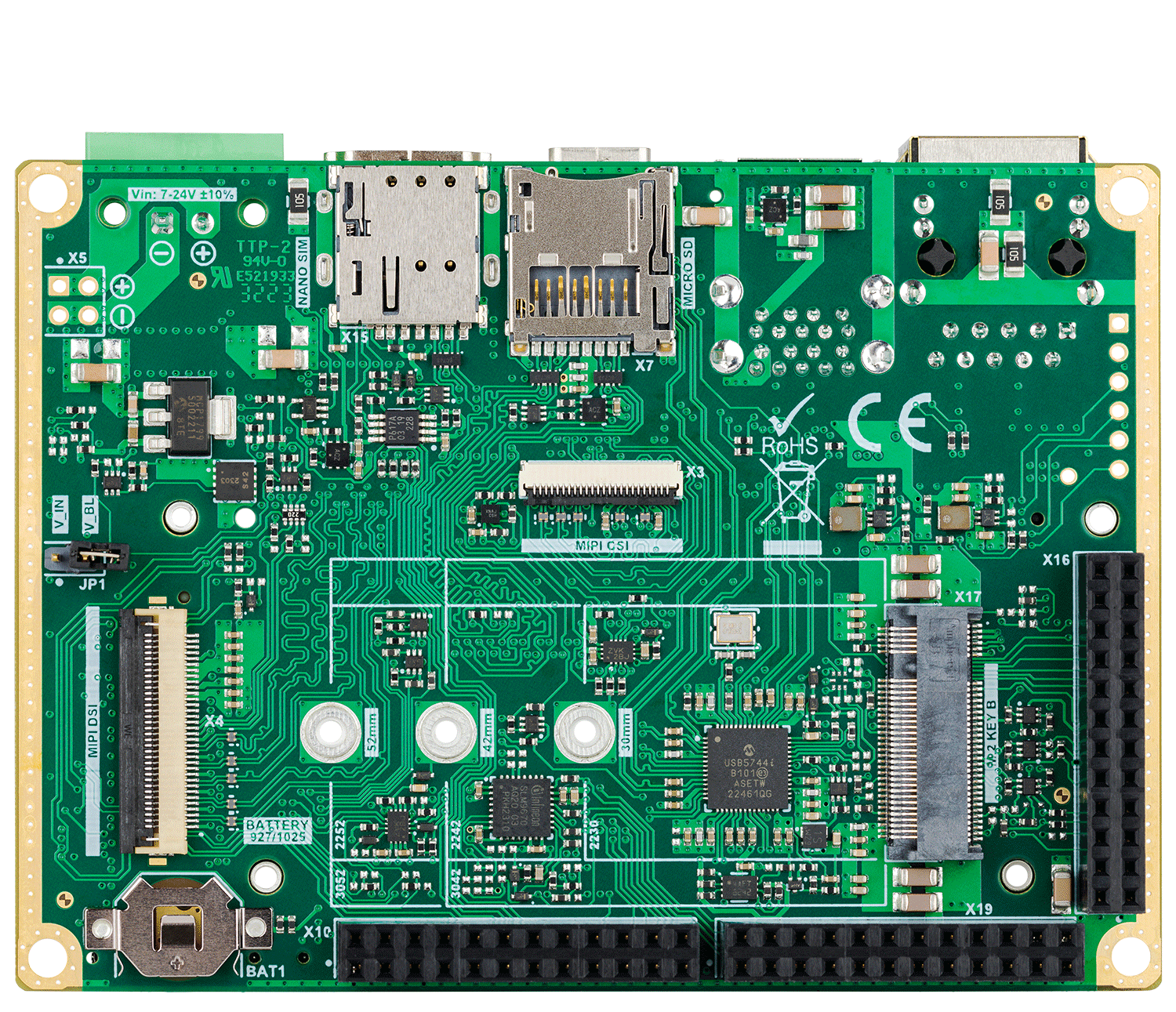

BACK
| Supported Modules | Entire Verdin Family |
| USB 3.0 | 2x Host** |
| USB 2.0 | 1x USB-C (DualRole) |
| Ethernet | 1x Gigabit with TSN |
| PCIe* | 1x M.2 (Key B) |
| I2C | 4x |
| SPI | 1x |
| UART | 4x (1.8V) |
| PWM | 2x |
| GPIO | up to 40 |
| Analog Inputs | 4x |
| SDIO/SD/MMC | 1x 4 Bit (microSD) |
| CAN | 2x (without transceivers) |
| Low-speed Extension Connectors | 3x |
**: USB 2.0 only when using an SoM with no USB 3.0 support
| Display Serial Interface | 1x Quad Lane MIPI DSI |
| LVDS | 1x Dual Channel* |
| Digital Audio | 1x I2S |
| HDMI | 1x 2.0* |
| Capacitive Touch Interface | Yes |
| Camera Serial Interface | 1x Quad Lane MIPI CSI-2 |
| LEDs | 4x |
| RTC Backup Power | 1x CR1025 Battery Holder |
| TPM | 1x TPM2.0 |
| Altium CAE Data Freely Available | Yes |
| Supply Voltage | 7-24V DC ±10% |
| On-Board Power Supplies | 5V 6A 3.3V 7A 1.8V 2A |
| Size | 100 x 72 mm (Pico-ITX) |
| Temperature | -25° to 85° C |
| Intended Use | For End Products |
| Availability | 2034+ |
Help me choose the optimal Carrier Board
Guie-mePreço por volume a partir de US$ 69,90
Cotação de volumeConfigurar Mallow Carrier Board
VamosEm volume, a partir de
US$ 69,90
Mallow Carrier BoardPN: 0161
Sample Production
-
USB 3.0 | 2.0
-
Gigabit Ethernet
-
HDMI*
-
LVDS*
-
MIPI DSI
-
MIPI CSI
-
TPM
-
-25° to 85° C
- Quantidade
de amostra - 1-99
US$ 107,50
- Compre já
- Quantidade
de volume - 100 - 10,000
- Cotação de volume
Help me choose the optimal Carrier Board
Guie-meAcessórios
A Toradex fornece acessórios prontos pra uso que podem ser utilizados diretamente em produtos finais. Para alguns dos acessórios são disponibilizados os arquivos de design, incluindo desenhos de montagem, esquemas e projetos completos em Altium.
A Toradex testa os periféricos listados em sua loja virtual e trabalha diretamente com fornecedores de câmeras, modems, monitores, sensores e muito mais, para tornar a integração com SoMs da Toradex o mais fácil possível.
- Compatible with Verdin iMX8M Mini, iMX8M Plus and AM62
- 4 screws (M2x10mm) included with each heatsink for easy mounting to Verdin Carrier Boards
- LVDS cable (250mm) and 10 pin FFC cable (250mm) to connect it with a Carrier Board
- Power Adapter: 12VDC 30W with international plugs
- Compatible with: Apalis Evaluation Board, Ixora Carrier Board, Colibri Evaluation Board, Iris Carrier Board, Verdin Development Board, Dahlia Carrier Board
- MIPI CSI-2 interface
- onsemi AR0521 1/2.5" 5MP color image sensor with ISP
- M12 lens mount (S-mount)
Videos
O Mallow no Embedded World 2023
Webinar: Desenvolva Produtos Modernos e Competitivos com o Verdin AM62
Roadmap
Min. Product Commitment
2034+
Hardware Roadmap
This roadmap indicates how the product is planned from a Toradex hardware development point of view. This is not a detailed release date representation, but visualization of our internal product development timeline.
* Please note that the Product Version might change before going to Volume Product state without prior notice. Toradex is striving to provide a flawless experience once the product is being declared a Volume Product and therefore the hardware might be updated during the Sample Product phase. For details about the Toradex phase-over policy please refer to the PCN Policy Page.
For more details about PID8 level changes and historical releases please refer to the developer page.
- Q3'23
- Q4'23
- Q1'24
- Q2'24
- Q3'24
Mallow Carrier Board
- In Development
- Sample Production
- Volume Production
× ![]()
